UHV z-travel units with replaceable bellows

The z-travel units shown here are used in our multi-cell evaporators. Due to their compact dimensions, they are presented separately here.
We can offer the z-travel unit with bellows from various manufacturers.

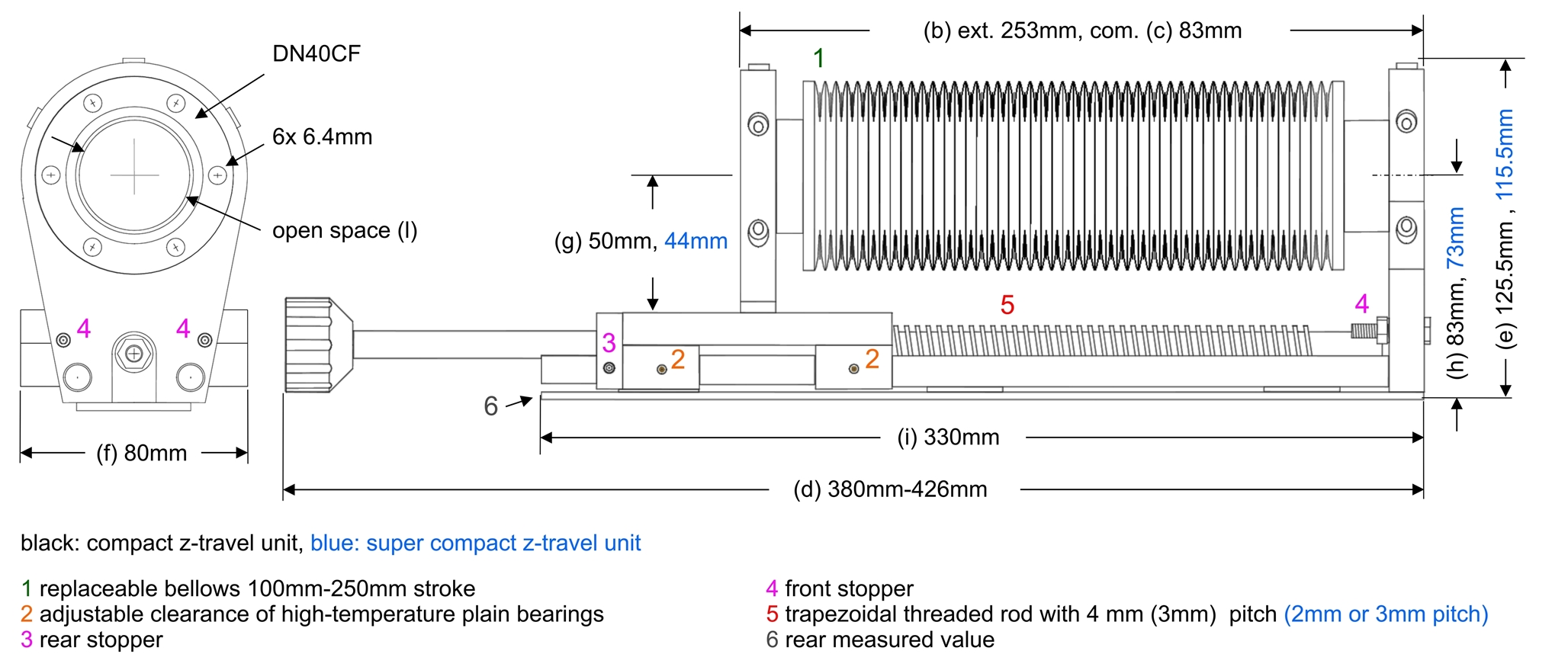

Example with VAT bellows, (a) stroke 170mm

The following features apply to all of the displacement units we offer:

Bellows: replaceable, ID 39 mm
Base flange: DN40CF with through holes, fixed
Movable flange: DN40CF with through holes, rotatable
Spindle pitch: 2,3 or 4 mm
Width f: 80 mm
Total height e: Compact version 125.5 mm, super-compact version 115.5 mm
Height from lower edge to axis h: Compact version 83 mm, super-compact version 73 mm
Heating temperature: 200°C
End stops: adjustable
Slider: adjustable bearing play
Scale: on the bottom for reading the stroke dimensions
Ideal for Kentax^® flanges (sold separately)

z-travel units based on VAT bellows

> > >

Name	stroke (a) [mm]	exp. (b) [mm]	com. (c) [mm]	total^* (d) [mm]	standard (d) [mm]	standard price [€]
ZT100VAT	100	183	83	310-380	350	2,290.00
ZT125VAT	125	208	83	330-380	380	2,490.00
ZT150VAT	150	233	83	360-410	380	2,590.00
ZT170VAT	170	283	83	380-430	380, 430	2,690.00

z-travel units based on other bellows

> > >

Name	stroke (a) [mm]	exp. (b) [mm]	com. (c) [mm]	total^* (d) [mm]	standard (d) [mm]	standard price [€]
ZT100	100	191	91	320-380	380	1,960.00
ZT150	150	258	108	380-430	380, 430	2,160.00
ZT200	200	329	129	450-500	480	2,560.00
ZT250	250	392	142	520-570	550	2,880.00

^* surcharge for other length is 150€

In the image on the left, the position scale on the underside is visible. The image on the right shows a super-compact
z-travel unit with a 100-mm stroke.
